Draw Star Charts using Python


This Python script will generate SVG star charts, like the ones shown below:

Star Chart showing Orion

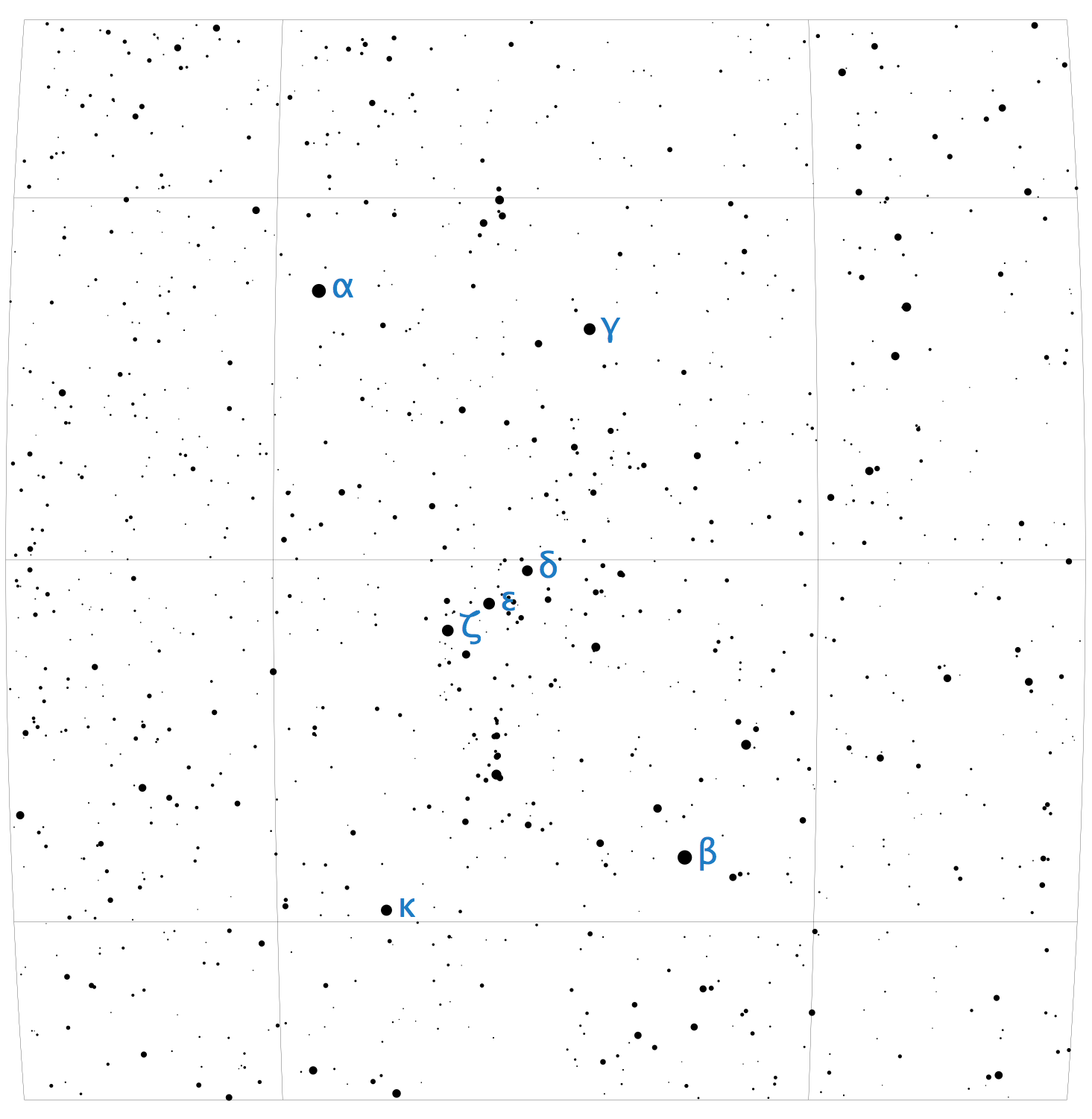

The constellation Orion, showing stars down to magnitude 8 (original SVG)

The script reads data about the position and brightness of stars from a CSV file like this one. Each row in the CSV file contains information about a single star in 4 columns as follows:

  1. Right-Ascension: the star's angular distance eastward from the vernal equinox (0 to 24)
  2. Declination: the star's angular distance northward from the celestial equator (-90 to +90)
  3. Magnitude: the star's brightness
  4. Label: an optional field used to add labels to stars (see the Greek letters in the example chart above)

For example

5.91937636,+76.86957095, 8.07
5.91952477,+07.40703634, 0.45,α
5.92011402,+61.86673905, 8.60
5.92045102,-73.15075170, 7.72

The area to be covered by the chart is specified using a SkyArea object, which must be referenced in the file. A few pre-defined areas are included, such as complete northern and southern sky maps:

Star Chart showing the northern sky Star Chart showing the southern sky

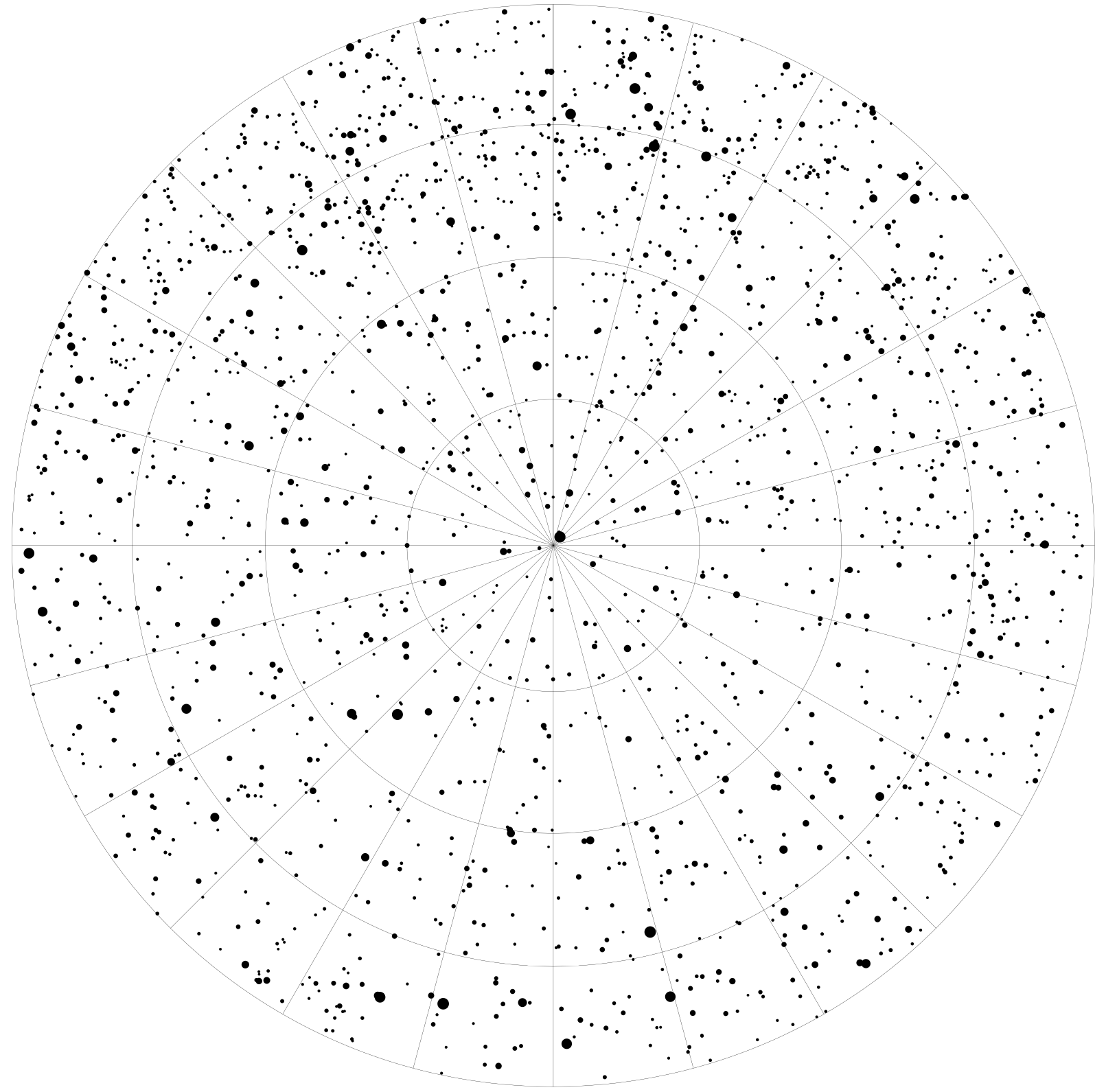

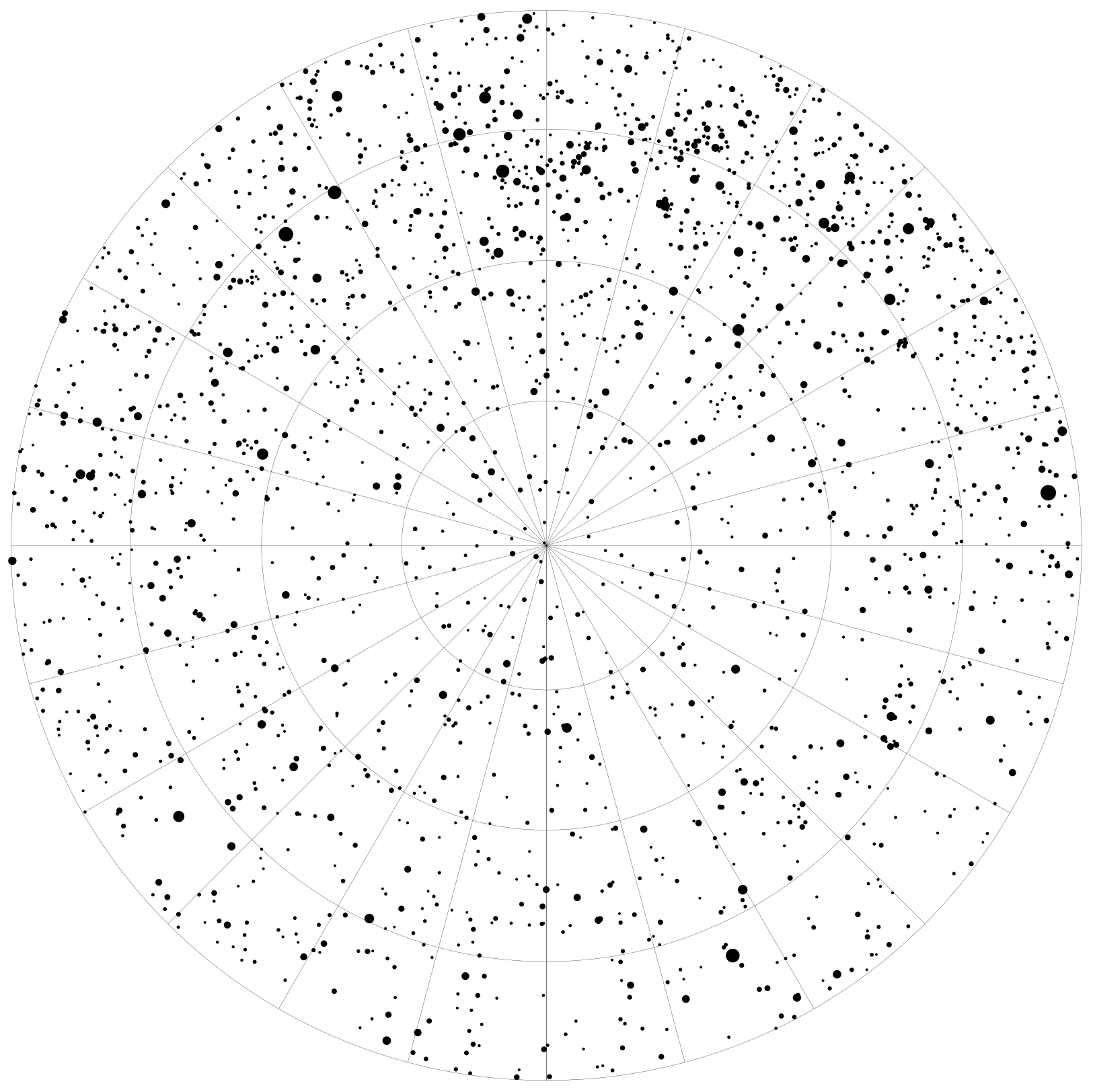

Maps of the Northern and Southern skies, showing stars down to magnitude 7 (original SVGs: North and South)

The script is run by simply executing the file, as follows:


The SVG file will be created in the current directory, and will be named star-chart.svg
